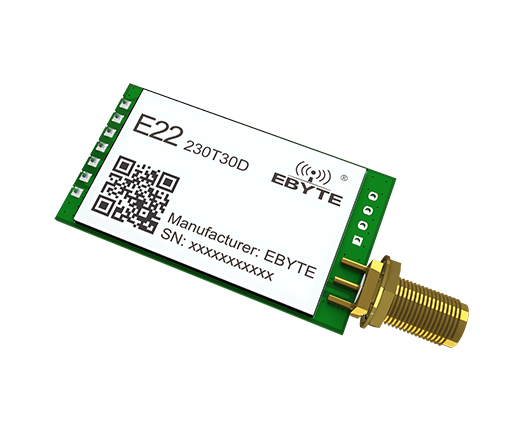

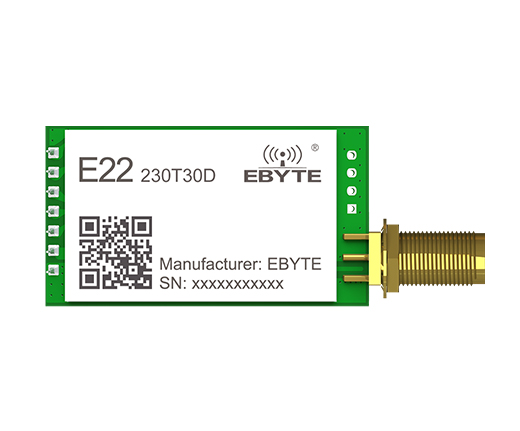

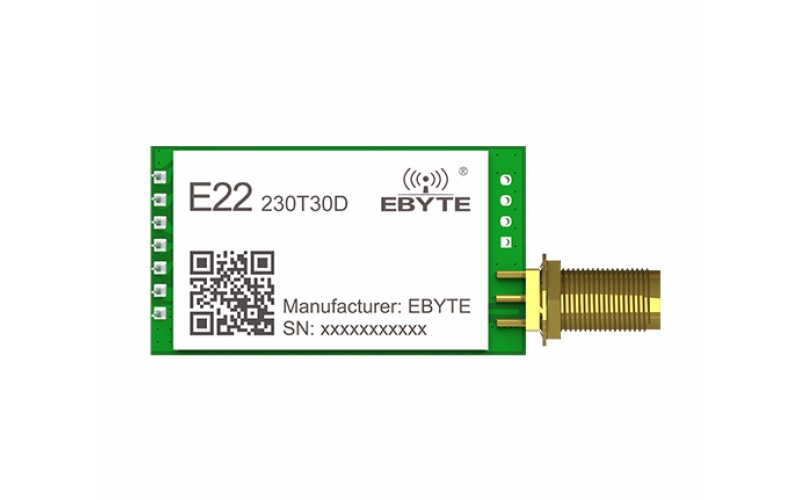

E22-230T30D SEMTECH's LoRa solution lora module wireless serial port module

[Frequency]：220.125~236.125MHz

[Power:]：30dBm

[Distance]： 10km

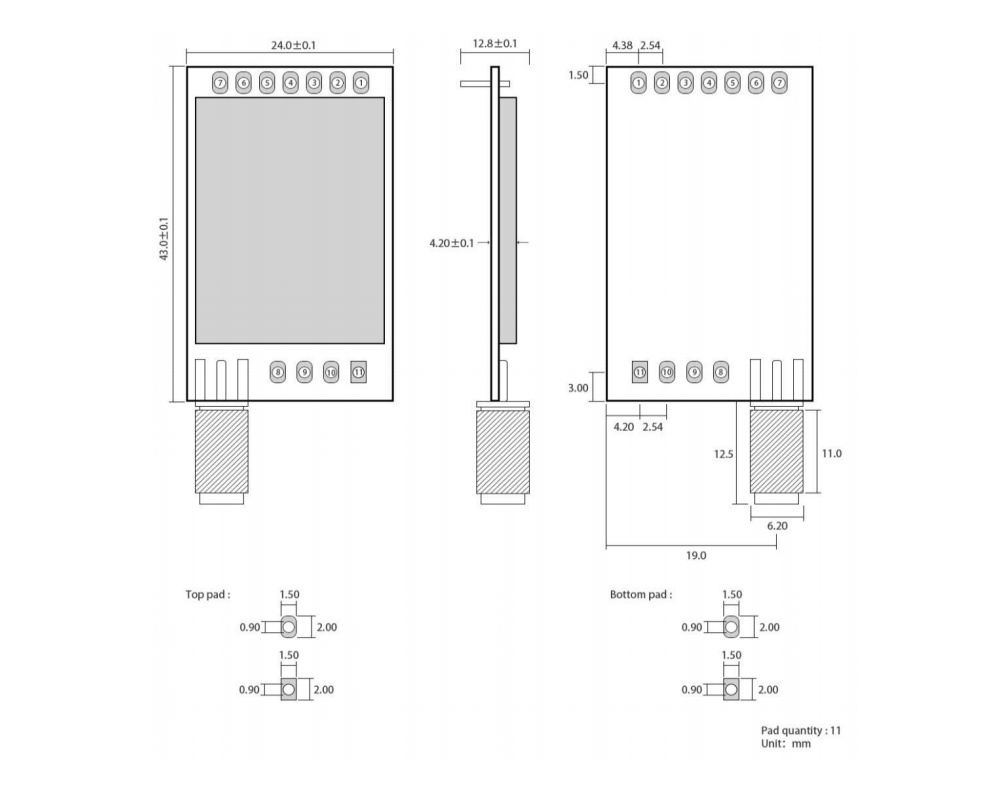

[size]：24*43mm

[Product weight]：9.3±0.1g

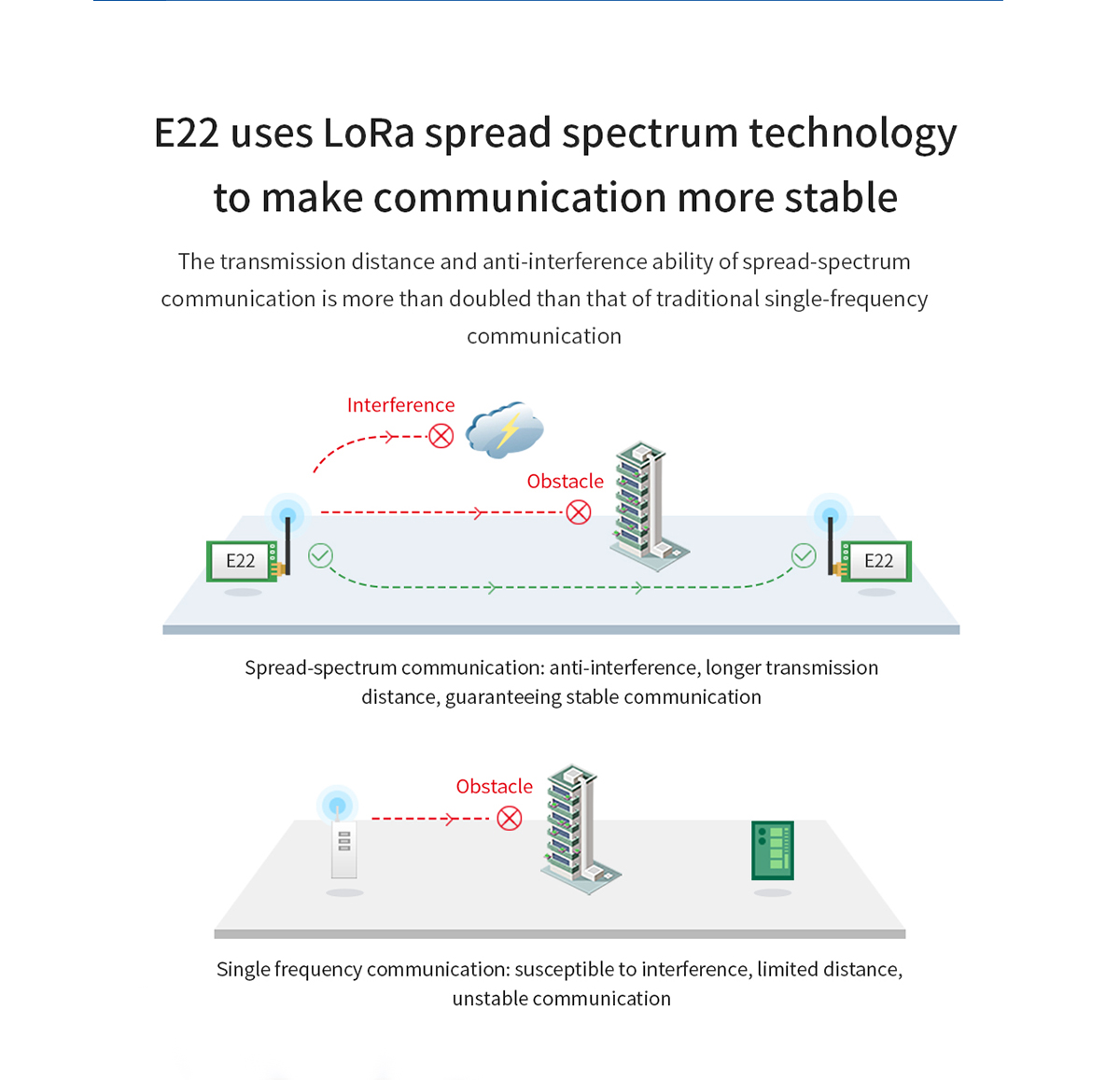

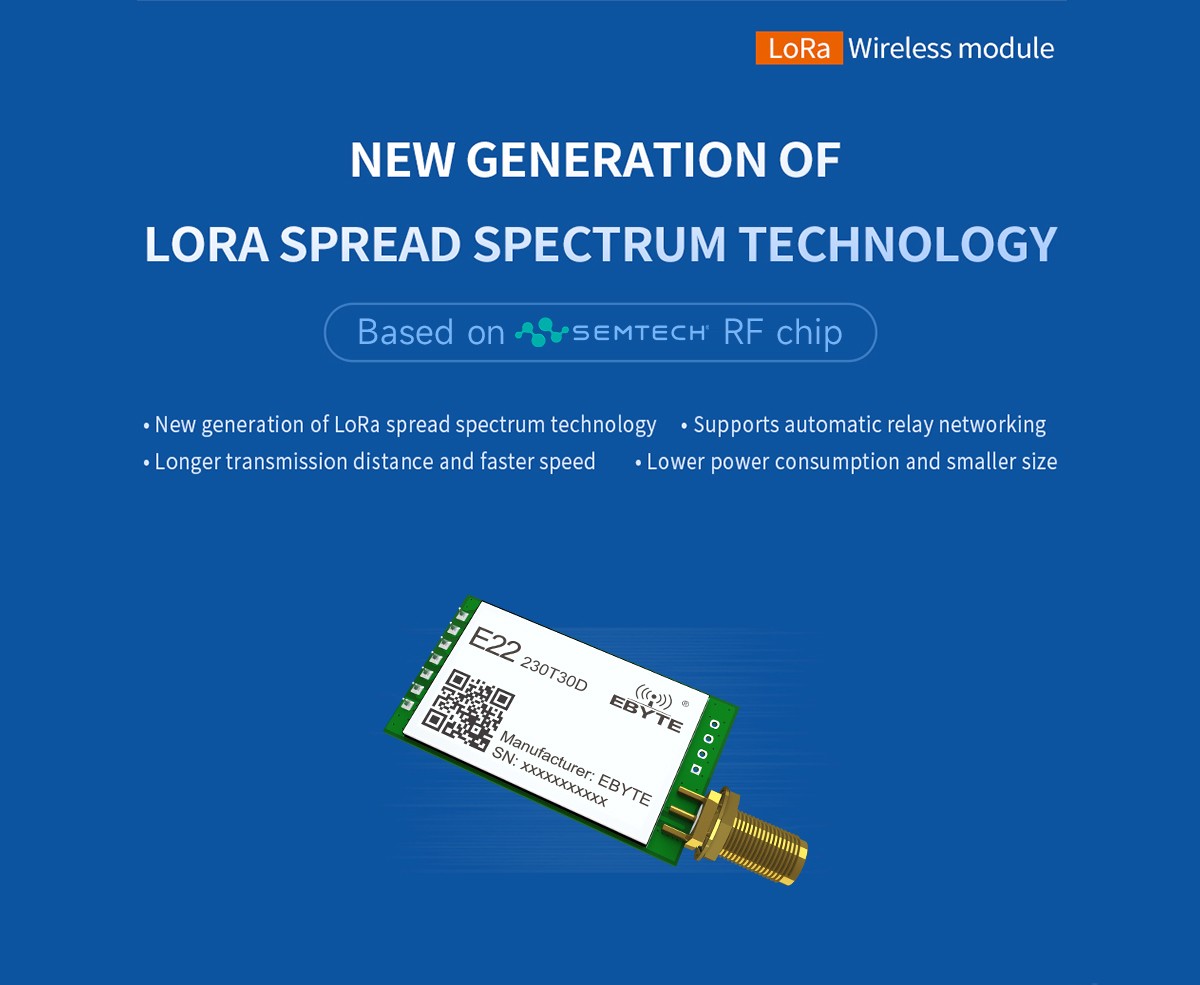

[Introduction]：E22-230T30D is a new generation of LoRa wireless module. It is a wireless serial port module (UART) based on SEMTECH's LoRa solution radio frequency chip. It has a variety of transmission methods and works in the (220.125~236.125MHz) frequency band (default 230.125MHz). LoRa spread spectrum technology, TTL level output, compatible with 3.3V and 5V IO port voltages.

Send Inquiry Online Inquiry

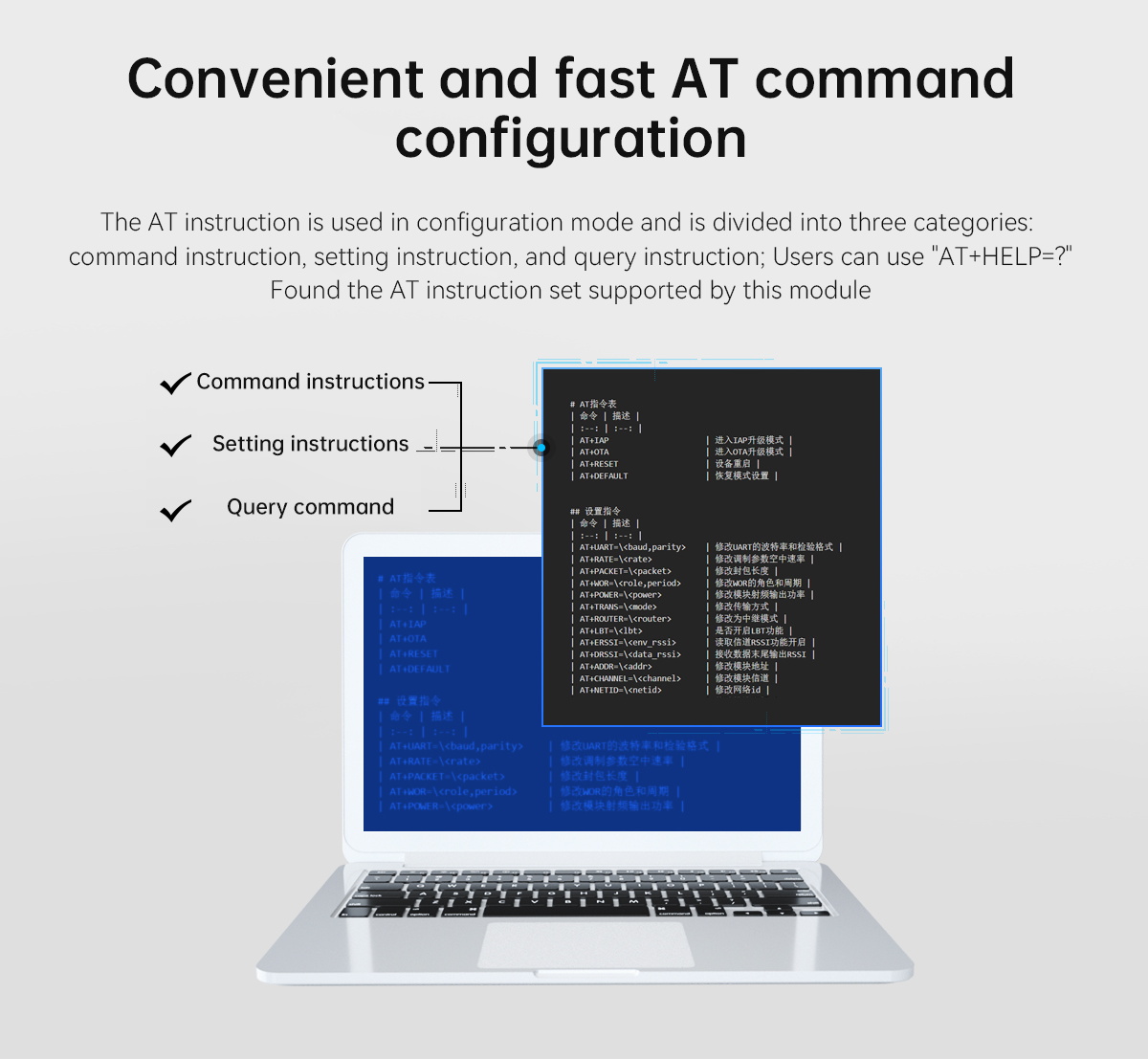

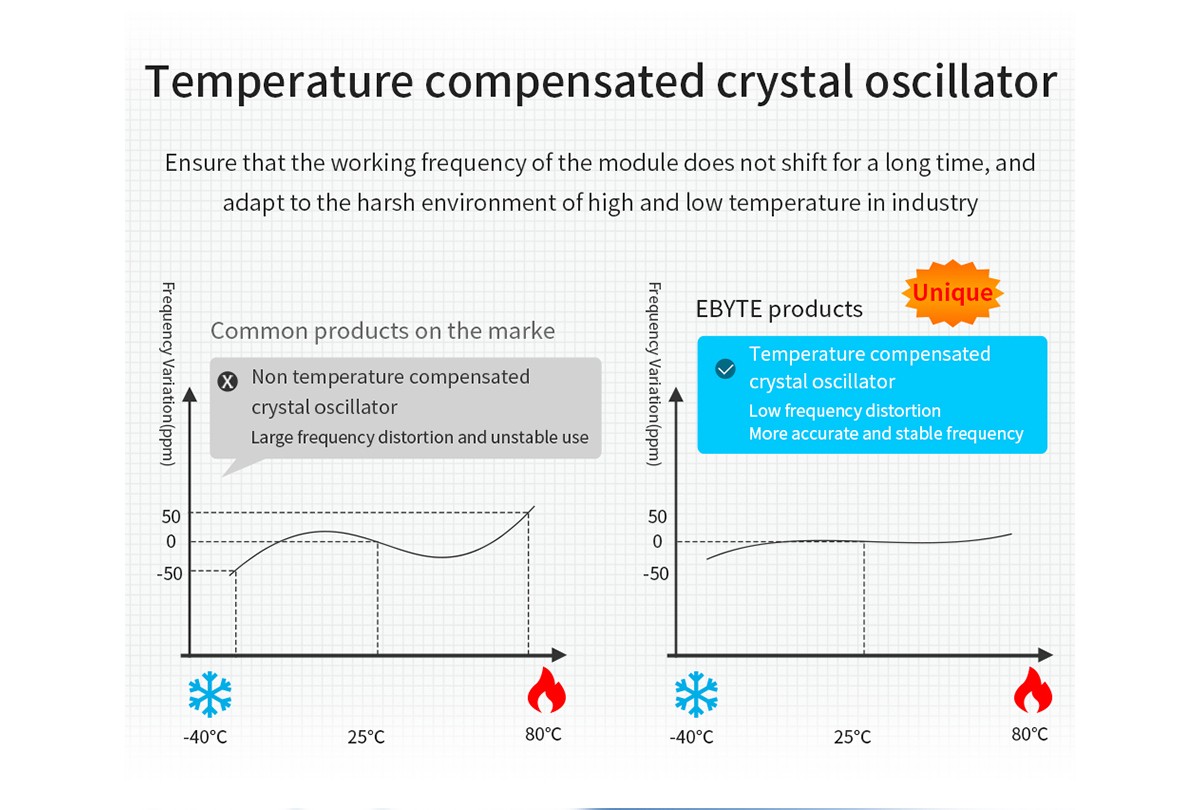

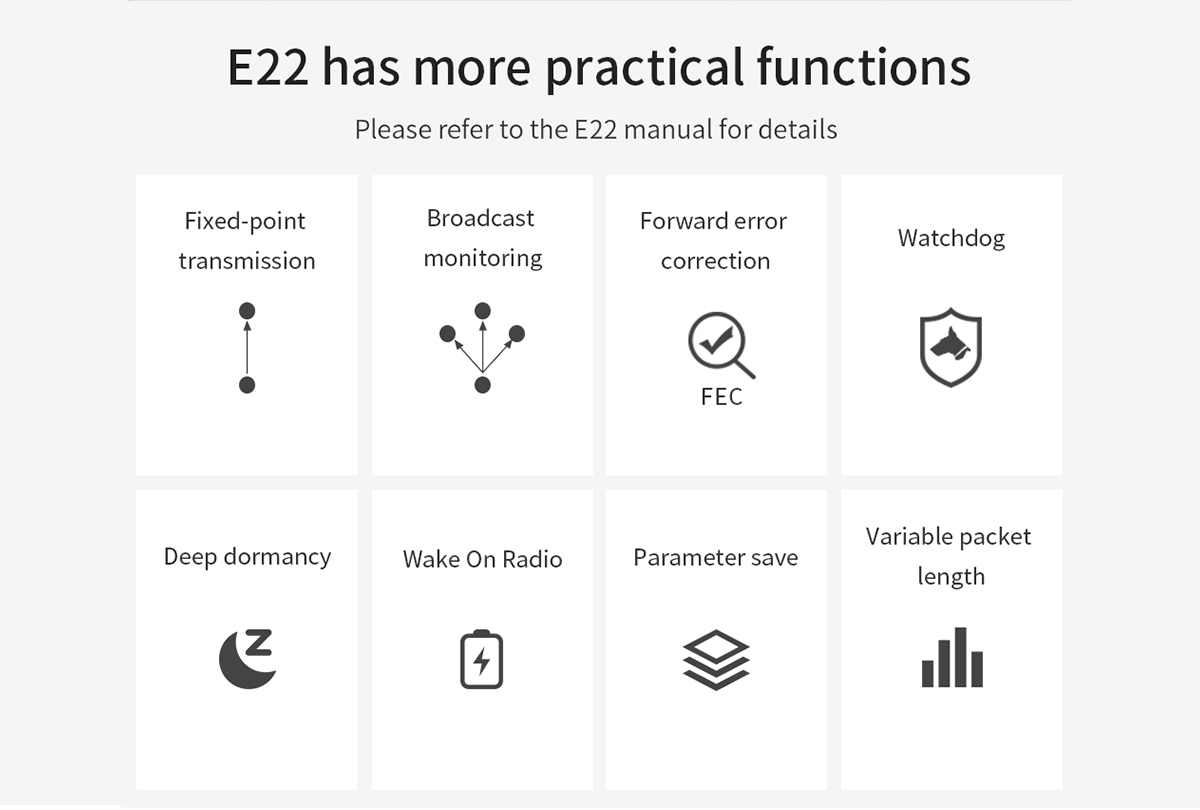

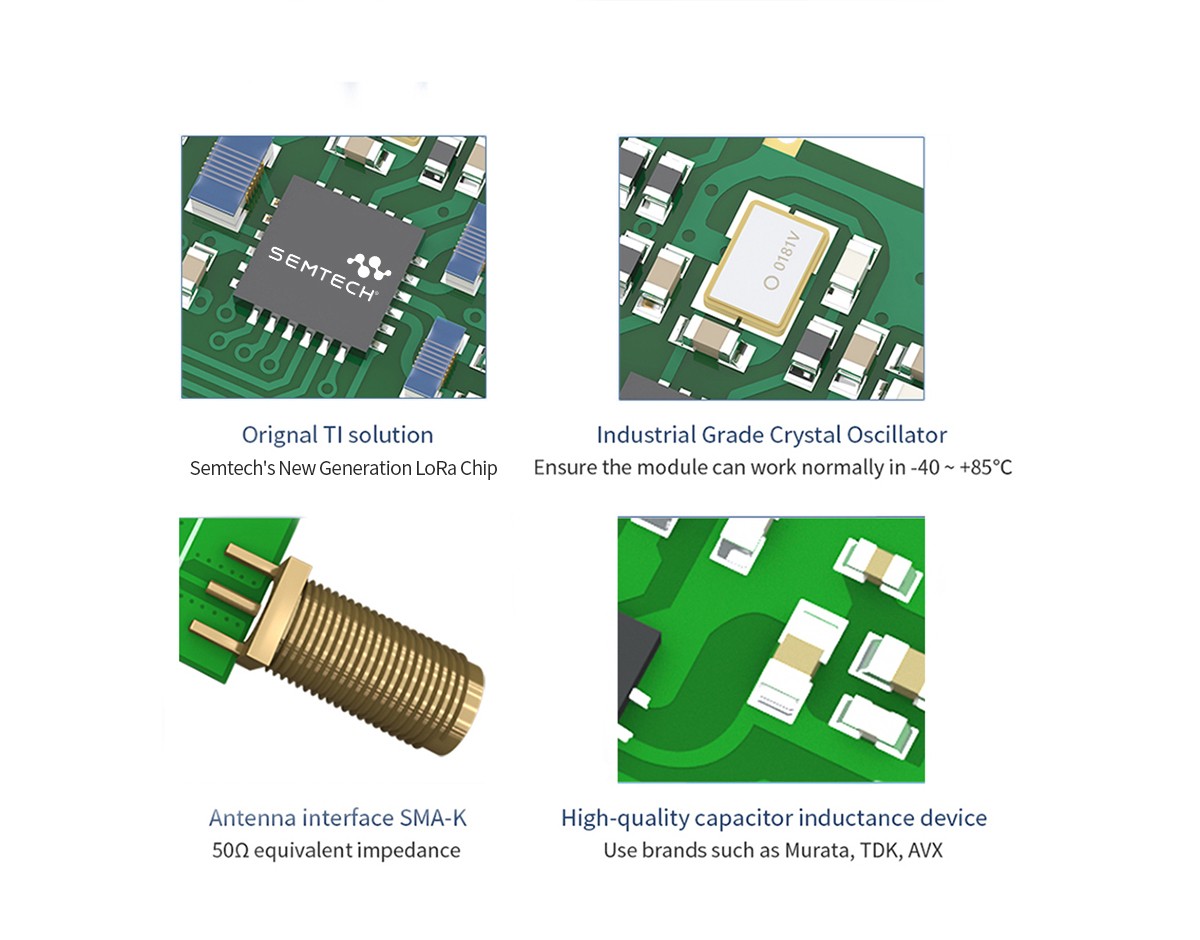

ZZteco

ZZteco

ZZteco

ZZteco

ZZteco

ZZteco

ZZteco

ZZteco

ZZteco


Main parameterDescriptionRemark
Distance for reference10kMTest condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps
TX length240 ByteCan be configured via command as 32/64/128/240 bytes per packet to transmit
Buffer1000 Byte-
ModulationLoRa-
Communication interfaceUART-
PackageDIP-
Size24*43mm-
AntennaSMA-K50 ohm impedance
Main parameterMin.Typ.Max.UnitRemark
Operating voltage3.355.5V≥5.0 V ensures output power
Communication level-3.3-VFor 5V TTL, It is recommended to add level conversio
Operating temperature-40-+85℃Industrial design
Operating frequency220.125-236.125MHzSupport ISM band
TX current-530-mAInstant power consumption
RX current-17-mA-
Sleep current-2-μASoftware is shut down
Max Tx power29.53030.5dBm-
Receiving sensitivity-146-147-148dBmAir data rate is 2.4kbps
Air data rate0.3k2.4k15.6kbpsControlled via user’s programming


ZZteco

No.NameDirectionFunction
1M0Input（weak pull-up）Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded).
2M1Input（weak pull-up）Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded).
3RXDInputTTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. Ground
4TXDOutputTTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output
5AUXOutputTo indicate module ’s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as push-pull output (can be suspended).
6VCCInputPower supply ：3.3~ 5.5V DC
7GNDInputGround
8Fixed hole-Fixed hole
9Fixed hole-Fixed hole
10Fixed hole-Fixed hole
11Fixed hole-Fixed hole


label: LoRa solution LoRa Module
